Ksb Pump Mechanical Seals

Basic Features

• Structure: Single End
• Pressure: Low Pressure Mechanical Seals
• Speed: General Speed Mechanical Seal
• Temperature: General Temperature Mechanical Seal
• Performance: Wear
• Standard: JB/T1472
• Model NO.: SSI-91
• Balance: Unbalanced
• Specification: Inner Diameter: 16 mm to 120 mm

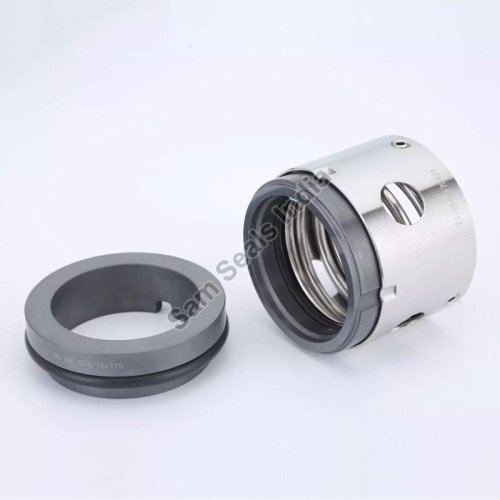

Type SSI-91 Mechanical Seal for Chemical Centrifugal Pumps, Screw Pumps, and Sewage Pumps

Structural Features: single end, single spring, unbalanced, independent direction of rotation, lug transmission. This component has a simple structure and high reliability.

Industrial Standards: JB/T1472

Scopes of Application: designed for chemical pumps, screw pumps, oil pumps, and paper making equipment, mainly used in oil refining, chemical engineering, chemical product transportation, water treatment, chemical fiber and other industries.

Operation Parameters:

• Pressure: 0.8 MPa or less
• Temperature: – 20 ~ 150 ºC
• Linear Speed: 15 m/s or less

Materials:

• Rotary Ring: SiC/TC
• Stationary Ring: Carbon/SiC/TC
• Elastomers: NBR/EPDM/Viton/PTFE
• Springs: SS304/SS316
• Metal Parts: SS304/SS316/SS316L

Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
