Slurry Seals
SAM SEALS INDIA produces several types of slurry mechanical seals. They are employed specifically with media that contains solid particles and abrasives. In process industries, the sealing of abrasive media is a significant difficulty. It is built to flourish in the most challenging abrasive slurry situations.
Hydro-Serve Slurry Seals have no trouble with process fluids such as ores, limestone, phosphates, kaolin clay, drilling mud, lime mud, coarse coal, boiler fly ash, rock salt, sludge, sand, and gravel.
Our team's dedication, diligence, and in-depth expertise in the sector have helped the business reach new heights. His extensive industry knowledge has helped the business adopt new techniques for producing high-quality items quickly and effectively.
| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | Full Vacuum To 7 Bar |
| MOC | SS 316 |
| Shaft Dia. | 25mm to 80mm |
| Temperature | -30 oC to 260 oC (Depending upon Elastomer) |
| Speed | 3000 r.p.m. |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |
Designed to handle solids up to 14% by weight. Hydraulically balanced faces for excellent seal reliability. Springs are located outside the process. Flushing helps to lubricate or cool the sea l faces from atmospheric side of mechanical seal. They are cost effective for basic application such as Centrifugal Pumps and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry, General Chemical Slurry.
Design Features:
Slurry seal. Standardized modular design. Single Acting. Mechanical Seals. Inside Mounted.
Applications :
- Specially used in paper industries, Petrochemicals, Petrochemicals, Petroleum refinery etc.
Material :
- Seal Ring Faces : SiC, Carbon and TC
- Seat Faces : SiC and TC
- Elastomer : Viton, TTV, FEP and FFKM
- MOC : SS 316
Operating Limits :
- Shaft Dia. : 25mm to 80mm
- Pressure : Full Vacuum to 7 bar
- Temperature : -30 oC to 260 oC (Depending upon Elastomer)
- Speed : 3000 r.p.m.
| Business Type | Manufacturer, Exporter, Supplier |
| Speed | Up To 15 M/s |
| Seal Faces | Carbon/TC/Sic. Vs Ceramic/RB Sic./Tc |
| Secondary Seals | Viton/PTFE/GFT |
| Shaft Dia. | 25 to 150mm |
| Temp. | -50 to 280°C |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |

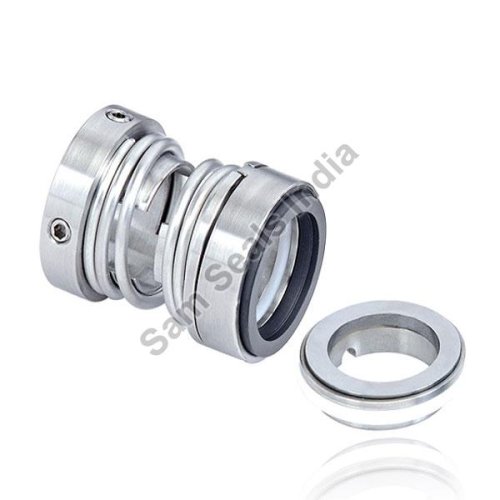

We avail our clients with our fine and unique range of Single Coil Spring Unbalanced Seal that is manufactured using high grade quality material and is made as per the matching quality standards.
TYPE SSI-32C : are single coil unbalanced seal with lugs these seals are simple in design & reliable & rugged enough for the most difficult applications. In SSI-32C’V” packing used as Secondary seals respectively. Special notches enhance the required driving torque & hence the seal is independent of direction of rotation. Non-clogging spring design enables these seals rube reliably used in situations involving abrasive, corrosive & viscous fluids generally handled by high Temperature pumps.
Applications :
Generally used in refineries, fertilizers, nuclear plants & petroleum pipelines.
Material :
- Seal Faces :Carbon/TC/Sic. Vs Ceramic/RB Sic./Tc
- Secondary Seals :Viton/PTFE/GFT
- Metal Components : SS-316
Operating Limits :
- Shaft Dia :25 to 150mm
- Pressure :up to 10 Bars
- Temp. :-50 to 280°C
- Speed :up to 15 m/s
| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | Up To 15 Bars |
| Speed | Up To 25 M/s |
| Seal Faces | Ceramic/Sic/Cabon Vs Ceramic/RB Sic. /TC |
| Shaft Dia. | 25 to 150mm |
| Temp. | -50 to 180°C |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |

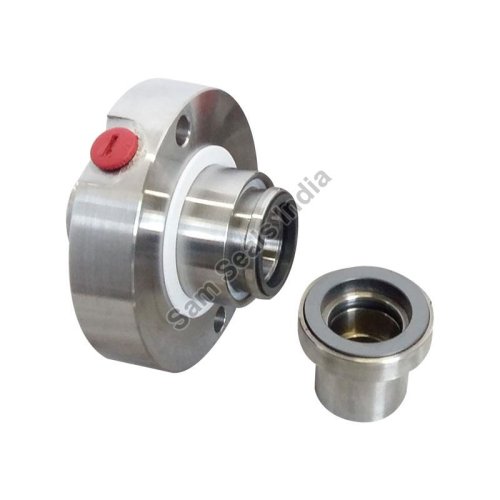

TYPE SSI-75 : Mechanical seal SSI-75 series are special purpose single coil spring balanced seals designed for use in media containing abrasive or solid particles.
Salient Features
- Spring completely protected from the product.
- Easily handle media containing abrasive particles and solids.
- Axial compensation of movement 1mm.
- Perfect for standardization purpose.
Applications :
- Specially used in paper industries, Petrochemicals, Petrochemicals, Petroleum refinery etc.
Material :
- Seal Faces : Ceramic/Sic/Cabon Vs Ceramic/RB Sic. /TC
- Secondary Seals : Viton/PTFE/GFT
- Metal Components : SS-316
Operating Limits :
- Shaft Dia :25 to 150mm
- Pressure :up to 15 Bars
- Temp. :-50 to 180°C
- Speed :up to 25 m/s
