Cartridge Seals
SAM SEALS INDIA is a cartridge mechanical seal manufacturer providing a distinctive selection of Cartridge Mechanical Seals. We offer a variety of prefabricated units that are quick and simple to assemble. Any transparent liquid may be sealed with this cartridge mechanical seal. Due to factory pre-assembly, such seals don't need to be adjusted in fitting, preventing installation issues.
When dependability is necessary, cartridge mechanical seals are the go-to option. These goods have a track record of being reliable, tough performers in a variety of sealing applications across sectors. The rapid and simple installation of cartridge seals makes them perfect for plant-wide consistency and time savings.
| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | 1.6 MPa or less |
| Temperature | – 20 ~ 150 ºC |
| Linear Speed | 10 m/s or less |
| Structure | Single End |
| Performance | Wear and Weak Corrosion |
| Model No. | SSI-GF |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |

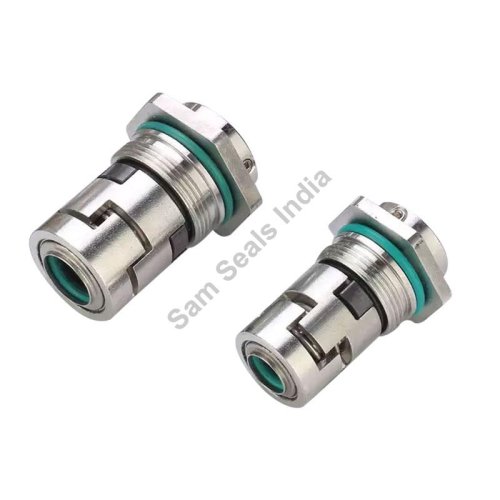

Mechanical Seals CR (cartridge), CRA (cartridge), GR-B and GR-C for Grundfos Water Pumps
Structural Features: single end, unbalanced, independent direction of rotation, cartridge shaft seals.
Industrial Standards: specifically Designed for Stamped Stainless Steel Centrifugal Pumps
Scopes of Application: specifically designed for Grundfos water pumps. Widely used in power plants, city water supply projects, and fire control.
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: General Temperature Mechanical Seal
- Performance: Wear and Weak Corrosion
- Standard: Specifically Designed for Grundfos Stamped Stainless Steel Centrifugal Pumps
- Model NO.: SSI-GF
- Balance: Unbalanced
- Specification: Inner Diameter: , 12 mm, 16 mm, 22 mm
Operation Parameters:
- Pressure: 1.6 MPa or less
- Temperature: – 20 ~ 150 ºC
- Linear Speed: 10 m/s or less
Materials:
- Rotary Ring Face: Carbon/SiC/TC
- Stationary Ring Face: Carbon/SiC/TC
- Elastomers (elastomer bellows for GB-B): NBR/Viton/EPDM
- Springs: SS304/SS316
- Metal Parts: SS304/SS316
Mediums: oil, water, weak acid and alkali and other corrosive mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
| Business Type | Manufacturer, Exporter, Supplier |
| Seal Faces | Ceramic /Sic/Carbon Vs Ceramic /RB Sic./TC |
| Metal Components | SS-316 |
| Secondary Seals | Viton/PTFE/GFT |
| Shaft Dia. | 25 to 150mm |
| Pressure | Up to 15 Bars |
| Temp. | -50 to 180°C |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |
DOUBLE Cartridge Seal : We are providing our customers a wide range of Double Cartridge Seals. These cartridge seals are widely finds its applications in various industrial sectors.
SSI-50DMC Double Cartridge seals are self-contained units consisting of a shaft sleeve, seal, and gland plate. The unit is fitted onto the pump shaft as a built assembly, and no further fitting is required. Double Cartridge seals are an attempt to over-come the fitting problems of conventional seal, They are supplied in double form, and the gland plate is often fitted with various tapping to provide for flushing, cooling water injection, and disaster control.
The cartridge can overcome several limitations of the standard pump gland. Tangential tapping for introducing fluids into the gland cause less disturbance to the seal face than the radial tapping often found on pump units. Look again at the tapping provided for flush water to the packed gland, a tangential tapping would provide a less turbulent water source. For a packing gland this may not be important but to a mechanical seal it can be another adverse condition with which to cope.
The setting position of the seal is set by the cartridge design, but the seal unit should not be screwed to the shaft until the gland plate is secured to the pump and any adjustments made to the shaft position. Once this has been completed the set screws can be tightened and the spacers removed.
So, what can go wrong. The design works to eliminate many of the common causes of seal failure on installation and because the seal is presented on its own shaft sleeve any damage that might be caused by a conventional seal to the pump unit is also eliminated.
- Seal Faces : Ceramic /Sic/Carbon Vs Ceramic /RB Sic./TC
- Secondary Seals : Viton/PTFE/GFT
- Metal Components : SS-316
Operating Condition:
- Shaft Dia. : 25 to 150mm
- Pressure :up to 15 Bars
- Temp. : -50 to 180°C
| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | Up To 15 Bars |
| Shaft Diameter | 25 to 150mm |
| Temperature | -50 to 180°C |
| Shaft Speed | Up to 25 m/s |
| Seat Faces | SiC and TC |
| Seal Ring Faces | TC and SiC |
Preferred Buyer From
| Location | India, Indonesia, Kenya, Kuwait, Oman, Qatar, Saudi Arabia, Sudan, Singapore, Turkey, Yemen, South Africa |
TYPE SSI-55 Single Cartridge Seal Series is a modular cartridge seal family that includes elastomer o-ring pusher seal designs. Type SSI-55 single seal arrangements incorporate an elastomer o-ring as the secondary sealing member. A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating. Seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads. Seal has an optional quench gland with carbon ring throttle bushing.
Balance Pusher Seals available in Single Configuration used for Sealing Environmentally. Dual Directional. Stationary spring design. Reversible Seal Head. No clogging Wave Spring outside the Product. Components in Cartridge Design are Builds for the Highest Reliability and Simple Installation.
- Seal Ring Faces :TC and SiC
- Seat Faces : SiC and TC
- Elastomer : Viton, PTFE, FEP and FFKM
- End fitting MOC : SS 316,HAST-C and Carpenter 42
- MOC : SS 316 – CHANGE OF MOC ON REQUEST
Operating Condition:
- Shaft diameter : 25 to 150mm
- Pressure : up to 15 Bars
- Temperature : -50 to 180°C
- Shaft Speed : up to 25 m/s
