Non-Contact Seals
Leading Manufacturers, Exporters and Wholesaler of Capsulated Spring Seal, Non-Contact Seal and Single Balanced Mechanical Seal from Mumbai.
| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | 6 Bars (Max) |
| Usage | General Chemicals Media Containing solids particles Acids & Alkalies |
| Size | 18 Mm To 100 Mm |
| Temperature | (-)20c To (+)100c |
| Speed | 2900 Rpm (Max) |
Preferred Buyer From
| Location | Worldwide |
Capsulated Spring Seals are a cost effective version of a Balanced seal The feature the same rugged and reliable construction as the Multi spring unbalanced seals.
Capsulated Balanced seals designed for media containing solid slurry particles. The springs are protected from solidifying media resulting in high reliability of the seal. This seals are independent of direction of rotation.
Operating Limits
- Pressure : 6 bars (Max)
- Temperature : (-)20c to (+)100c
- Speed : 2900 rpm (Max)
- Sizes : 18 mm to 100 mm
Applications :
- General Chemicals Media Containing solids particles Acids & Alkalies

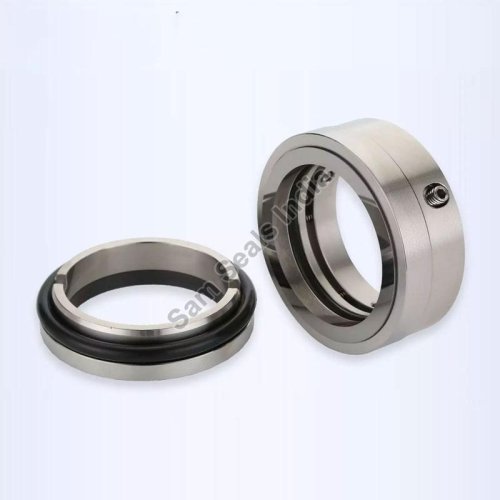

| Business Type | Manufacturer, Exporter, Supplier |
| Structure | Single End |
| Pressure | Medium Pressure Mechanical Seals |
| Speed | General Speed Mechanical Seal |
| Temperature | General Temperature Mechanical Seal |
| Model | SSI-22NC |
Preferred Buyer From
| Location | Worldwide |
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: General Temperature Mechanical Seal
- Performance: Wear and Weak Corrosion
- Standard: Specifically Customized
- Model NO.: SSI-22NC
- Balance: Unbalanced
- Specification: Inner Diameter: 30 mm to 160 mm
Structural Features: single end, multi springs, unbalanced, independent direction of rotation, screw pin transmission. The axial length of this seal is small. The loads on the sealing faces are balanced and the seal is not limited with the rotary direction. All transmission components are assembled as one body so the seal is easy to install. The transmission is also balanced and the seal is easy to adjust with stable performance.
Industrial Standards: Specifically Customized
Scopes of Application: mainly used in centrifugal pumps, submerged motors, clean water and sewage pumps, piping pumps and especially used in immersible pumps for water supply, sewage treatment and environmental protection industries. This component can work as an alternative to the similar product (M524 series) of Eagle Burgmann.
Operation Parameters:
- Pressure: 0 ~ 1.0 MPa
- Back Pressure: 0 ~ 0.2 MPa
- Temperature: – 20 ~ 150 ºC
- Linear Speed: 15 m/s or less
Materials:
- Rotary Ring Face: SiC/TC
- Stationary Ring Face: Carbon/SiC/TC
- Elastomers: NBR/FKM/PTFE
- Springs: SS304/SS316
- Metal Parts: 2Cr13/SS304/SS316
Mediums: oil, water, acid, alkali and corrosive mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal |
| Finishing | Polished |
| Color | Silver |
| Packaging Type | Carton Box |
| Specialities | Good Quality, Fine Finish |
| Warranty | 1 Year |
Preferred Buyer From
| Location | Worldwide |

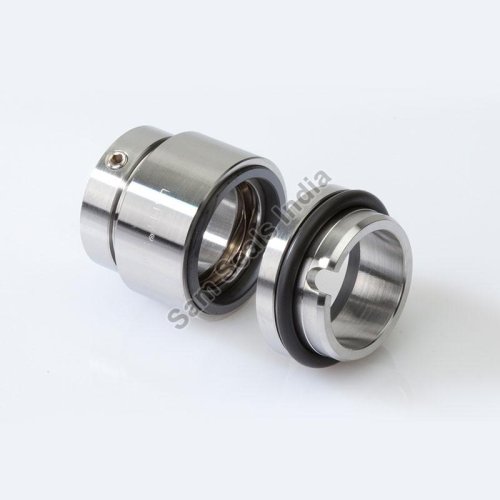

Standard balanced single cartridge seal with protected spring and pentagonal drive. The protected-spring design makes this seal suitable for a wide range of applications: pumps conveying slurries for the sugar industry, paper industry, extracting industry, for heavy industries. All simple assemblies possible (cartridge, tandem, quench, etc.). Standard balanced mechanical seal with protected spring and pentagonal drive. Imperial version available.
Friction faces : Friction faces Carbon impregnated resin (B1) Silicon carbide (U6). For the most difficult cases use friction faces made of nickel-tungsten carbide (U2). Supplied with FKM seals.
Fluids : All corrosive, abrasive and slightly clogging fluids.
Material : Centrifugal pumps
