| Business Type | Manufacturer, Exporter, Supplier |
| Specialities | Good Quality |
| Sealing Type | Double Mechanical Seal |
| Surface of Application | Industrial |
| Click to view more | |
Product Details

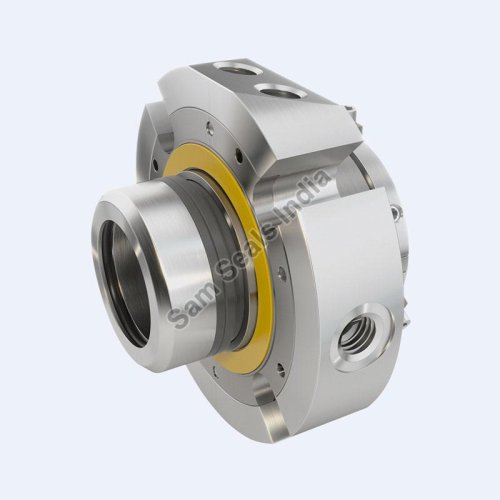

Reliable Double Mechanical Seal
Sam Seals India offers reliable sealing solutions for pumps, agitators, mixers, and rotating equipment where leakage control, safety, and uptime matter. A Double Mechanical Seal is the preferred choice when handling hazardous, toxic, corrosive, or high-temperature fluids, or when your process needs extra protection against seal failure. Compared to a single seal, it uses two sealing interfaces working together to reduce emissions, prevent product contamination, and increase equipment life.
In many industries—chemical, pharmaceutical, oil & gas, power, paper, and water treatment—double seals help maintain stable operation even under pressure fluctuations, dry-running risk, or abrasive media. With proper selection of seal faces, elastomers, and hardware materials, a double seal improves reliability while reducing unplanned shutdowns and maintenance cost.
At Sam Seals India, we focus on application-based sealing support so you get a solution that matches your media, speed, temperature, and operating pressure. Whether you need a cartridge style seal, balanced design, or a specific flush/plan arrangement, our goal is simple: safer operation and longer seal performance.
what is a double mechanical seal
A double mechanical seal is a sealing arrangement with two mechanical seals mounted in series—an inboard seal (process side) and an outboard seal (atmosphere side). Between them sits a barrier or buffer fluid that helps lubricate and cool the seal faces, while also acting as a protective layer. This design minimizes leakage to the environment and supports stable sealing in demanding applications.
Features:
- Double seal
- Balanced
- Independent of direction of rotation Cartridge unit
- Easy to install
- Single seals without connections with flush and with quench combined with lip seal or throttle ring.
- Additional variants available for ANSI pumps and eccentric screw pumps.
Application:
Generally cartridge multiple spring seal is used for slurries, sludges, syrups. The springs are isolated from media being sealed by dynamic elastomer.
- Single seals without connections with flush and with quench combined with lip seal or throttle ring.
- Additional variants available for ANSI pumps and eccentric screw pumps.
- Double pressure balanced
- Integrated pumping devise
- Ideal seal for standardizations
- Universal applicable for packings conversions, retrofits or original equipment
- No dimensional modification of the seal chamber (centrifugal pumps) necessary
- No damage of the shaft by dynamically loaded O-Ring
- Extended service life
- Straightforward and easy installation due to pre-assembled unit
- Individual adaptation to pump design possible
- Ideal seal for standardizations
- Universal applicable for packings conversions, retrofits or OEM
- No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height
- No damage of the shaft by dynamically loaded O-Ring
- Extended service life
- No damage caused by dirt entered during assembly
- Straightforward and easy installation due to pre-assembled unit
- Individual adaptation to pump design possible
Applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Sugar industry
Operating Condition:
- Temperature : -20ºC to +220ºC
- Pressure : Upto 10 bar
- Speed : 20 m/s
