Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Pressure | P=0…1.0Mpa（145psi） |
| Temperature | t = -40 °C …150 °C(-40°F to 302°F) |
| Sliding Velocity | Vg≤10m/s（32.8ft/m） |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Shaft diameter
d1=18…100mm

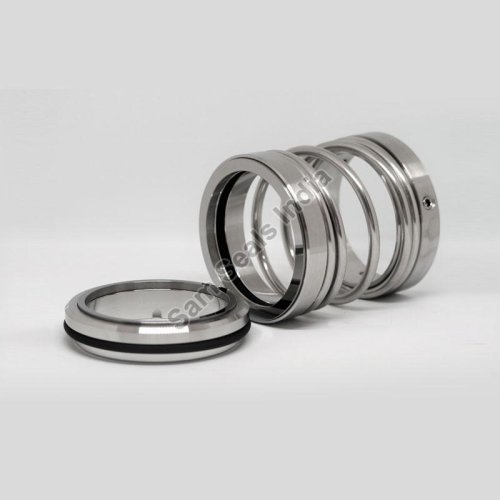

Model
SSI-20
Typically seals with large spring, O-ring pusher construction. Type SSI-20 with easy to install, covers a wide range of applications and reliable performance characteristic. With extend combination material options widely used in general corrosive chemical pump, Sewage pumps and industrial pumps
Features
- O-ring pusher construction.
- Transmission by typical large spring, independent of direction of rotation
- Single seal, unbalanced.
- Low risk of clogging in solids content or viscous liquids
Recommended Applications
- Petrochemical industry and sewage treatment industry
- Low solids content or viscous media
- Sewage pumps and industrial pumps and chemical pumps.
- Other Rotating Equipment.
Operating range
- Shaft diameter: d1=18…100mm
- Pressure: p=0…1.0Mpa（145psi）
- Temperature: t = -40 °C …150 °C(-40°F to 302°F)
- Sliding velocity: Vg≤10m/s（32.8ft/m）
