Mixture & Agitator Seals

Basic Features

• Structure: Double-End
• Pressure: High Pressure Mechanical Seals
• Speed: Low Speed Mechanical Seal
• Temperature: GeneralTemperature Mechanical Seal
• Performance: Corrosion
• Standard: HG21571-95
• Model NO.: SSI-108B
• Balance: Unbalanced and Balanced
• Specification: Inner Diameter: 20 mm to 220 mm

SSI-108B Mechanical Seal for Vertical Type Agitation Equipment

Structural Features: SSI-108B   is double end   unbalanced  and balanced, with bearing transmission. The component is cartridge seal with easy installation.

Industrial Standards: HG21571-95

Scopes of Application: mainly used in top driven vertical type agitation equipment, which does not have strict requirements for leak proof ness. This component can work as an alternative to M461  of Burgmann.

Operation Parameters:

• Pressure: – 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
• Temperature: – 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
• Linear Speed: 2 m/s or less

Materials:

• Rotary Ring Face: SiC/Carbon
• Stationary Ring Face: TC/SiC
• Elastomers: NBR/Viton/EPDM/PTFE/FFKM
• Springs: SS304/SS316/HC-276
• Metal Parts: SS304/SS316/SS316L

Mediums: water, oil, week acid. week alkali, and other normal mediums

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Basic Features

• Structure: Double-End
• Pressure: Low Pressure Mechanical Seals
• Speed: General Speed Mechanical Seal
• Temperature: Temperature Mechanical Seal
• Performance: Wear
• Standard: Standard
• Model NO.: SSI-108
• Balance: Unbalanced
• Specification: Inner Diameter: 50 mm, 60 mm, and 70 mm

SSI-108 Mechanical Seal for Horizontal/Vertical Agitation Equipment, Food Processing Devices and Sterilizers

Structural Features: double end, unbalanced. this component has a compact structure with good compatibility and easy installation.

Industrial Standards: DIN24960 and GB/T6556-94

Scopes of Application: mainly used in vertical and horizontal agitators, food processing machines and sterilizers.

Operation Parameters:

• Pressure: 0.3 MPa or less
• Temperature: – 10 ~ 120 C
• Linear Speed: 5 m/s or less

Mediums: food, water, and oil.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

We provide the best dry-running agitator seals made of premium materials. We are the top exporter of agitator seals in India. A variety of systems and vessels employ the agitator seals. The agitator seals are utilized in specific systems or pumps when a regular seal is ineffective.

We are dedicated to providing the respected customer with authentic quality Dry Running Agitator Seal. These cartridges feature effectively pre-assembled and preset components such as a single seal assembly, mating ring, gland, and sleeve.

Moreover, to assess the range's flawlessness, we do tests across the board on several specified characteristics. The following are some examples of these cartridges' high-grade features:

We are one of the leading providers of Multi Spring Balanced Seal  that are available in different sizes. Our range is available in market at competitive rates.

TYPE SSI-41B : are pushers type balanced multi spring seals generally used where high-pressure sealing is required. Due to its compact radial & axial dimensions these seals required lower stuffing box space for installation. These seals can be provided with single, double or tandem arrangement with external seal support systems & devices.

Applications :

• Generally used in Petrochemicals, Petroleum refinery, Light Hydrocarbons & General Industrial fluids.

Materials :

• Seal Faces :Carbon vs Ceramic/Sic./TC
• Secondary Seals : Viton/PTFE/GFT
• Metal Components :SS-316

Operating Limits :

• Shaft Dia :14 to 150mm
• Pressure :up to 30 Bars
• Temp. : -50 to 280°C
• Speed : up to 25 m/s

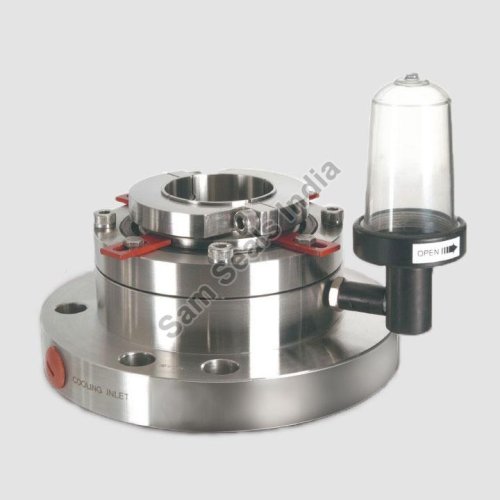

Seal type SSI-107GL are factory assembled & dynamically tasted cartridge units for steel, glass lined, ss mixers, agitators & vessels. These are used with non pressurized barrier fluid preferably clean soft water because of its good heat transfer qualities. Fluids like oil, hydrocarbon, solvents etc. can also be used as buffer fluid by considering the corrosion resistance of wetted parts & compatibility with main media to be sealed. These seals are supplied with cooling water jacket, which ensure cool running of seals.

SSI-107 Mechanical Seal for Vertical Type Agitation Equipment

Structural Features: SSI-107GL   is Single end   unbalanced  and balanced, wet seal without bearing arrangement. The component is cartridge seal with easy installation.

Industrial Standards: HG21571-95

Scopes of Application: mainly used in top driven vertical type agitation equipment, which does not have strict requirements for leak proof ness.

Operation Parameters

• Pressure: – 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
• Temperature: – 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
• Linear Speed: 2 m/s or less

Materials

• Rotary Ring Face: SiC/Carbon
• Stationary Ring Face: CERAMIC/SiC
• Elastomers: /PTFE/FFKM
• Springs: /SS316/HC-276
• Metal Parts: SS304/SS316/SS316

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
